Physics 12 Experiment 02

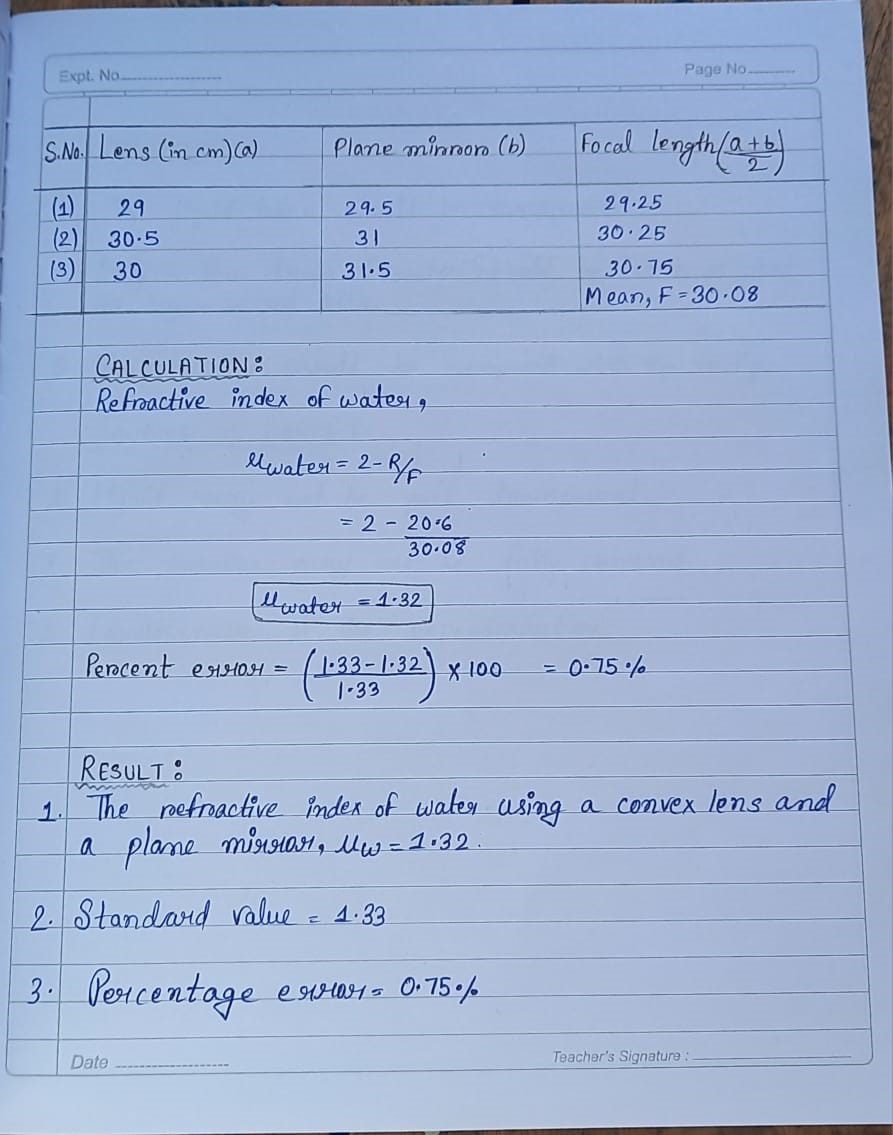

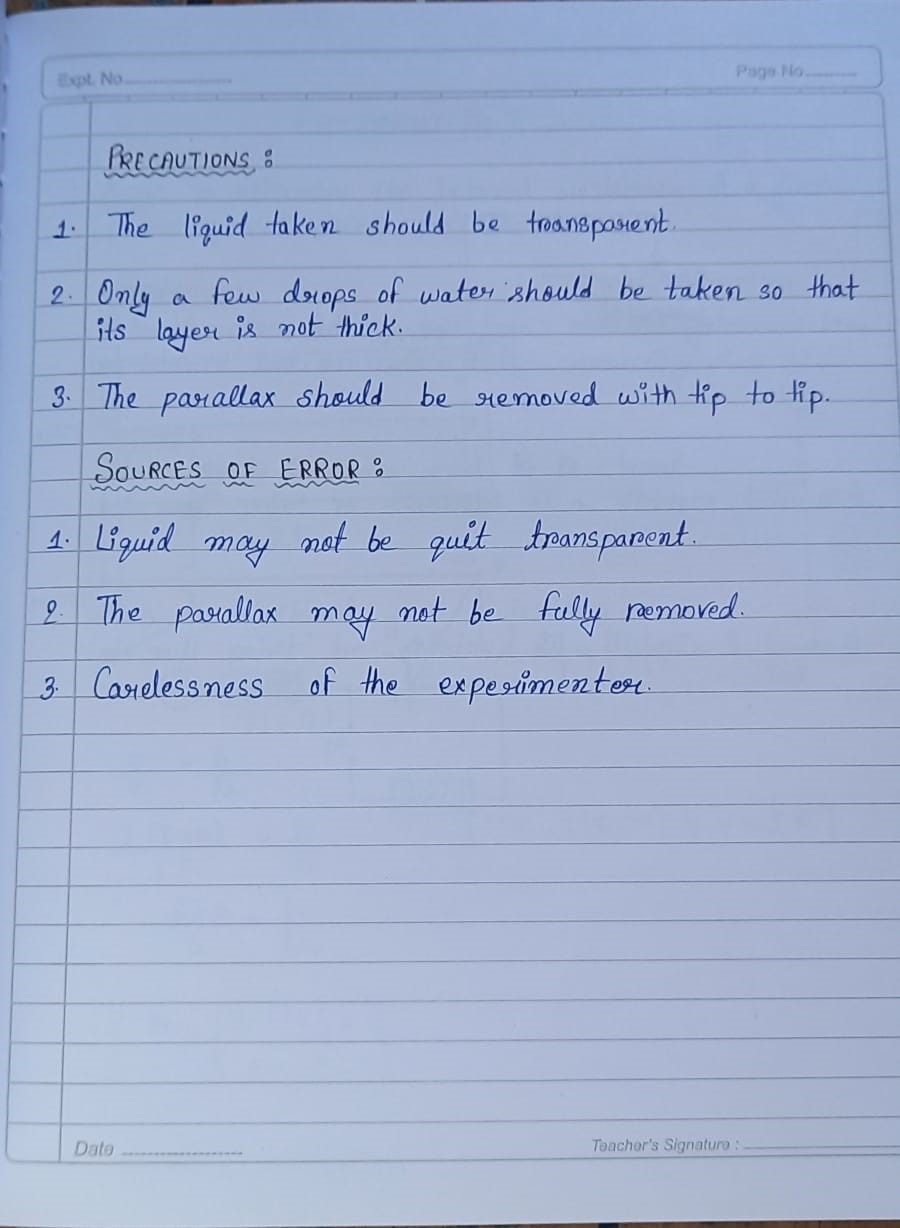

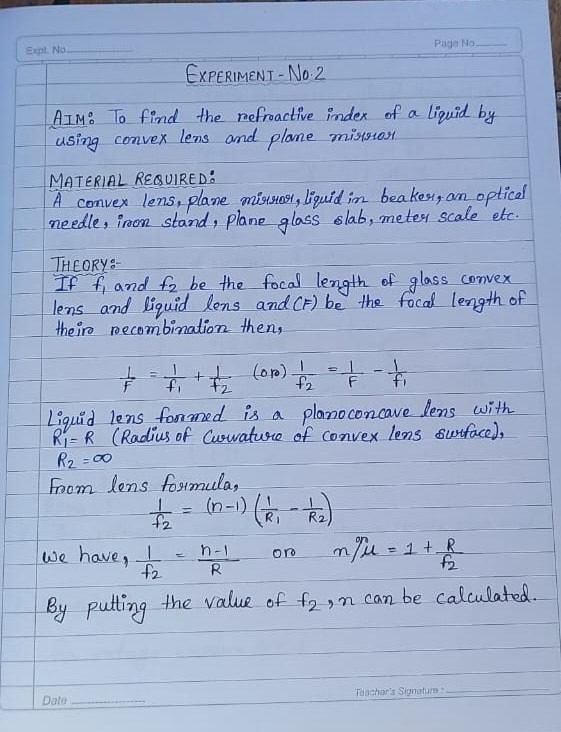

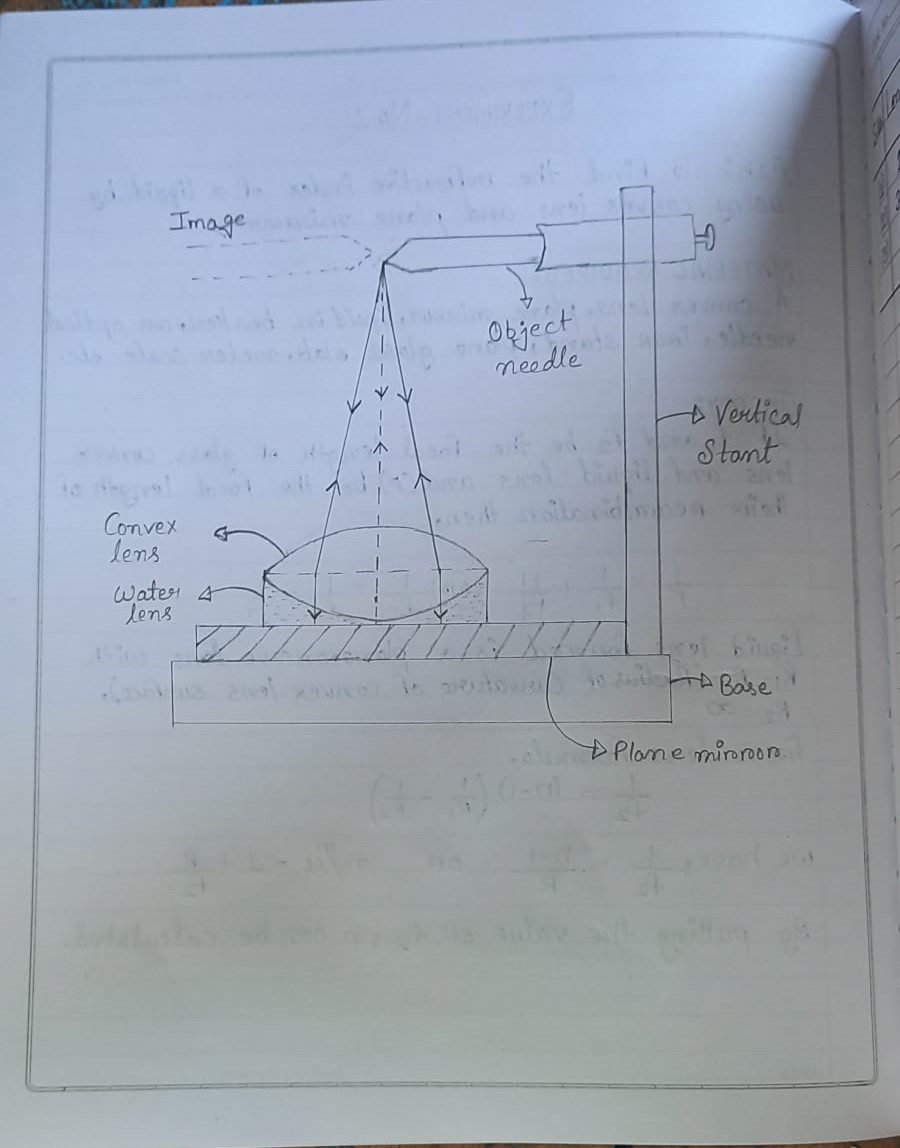

To find the refractive index of a liquid by using convex lens and plane mirror.




To find the refractive index of a liquid by using convex lens and plane mirror.
