Physics 12 Experiment 05

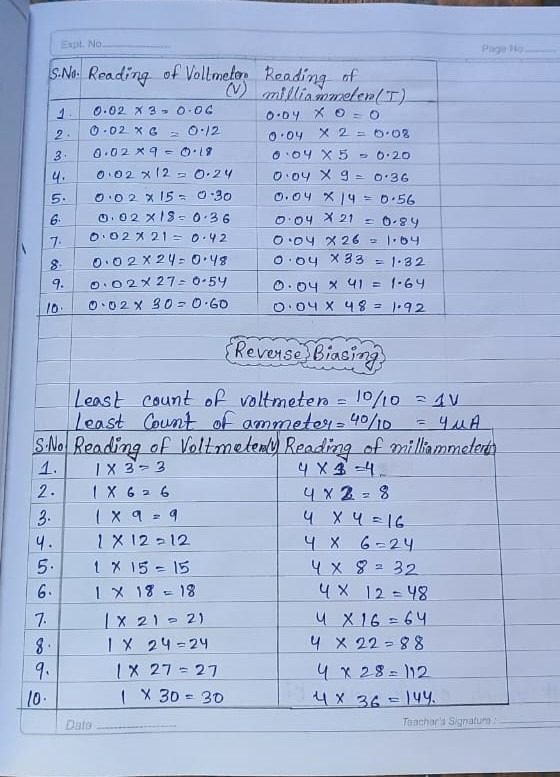

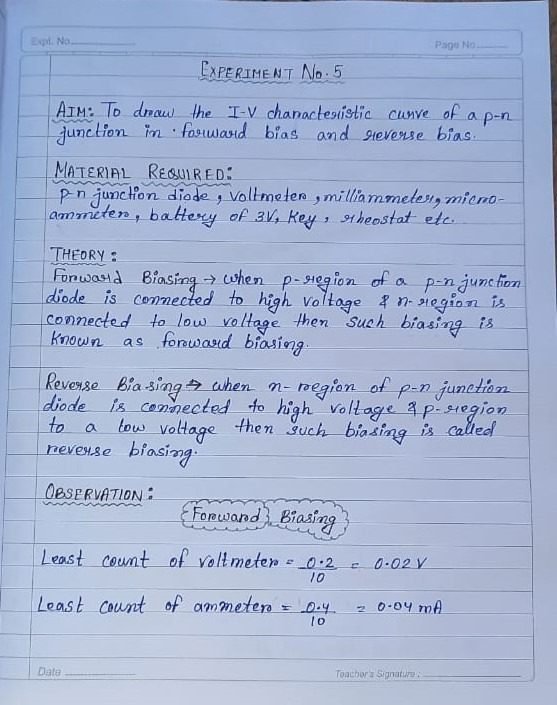

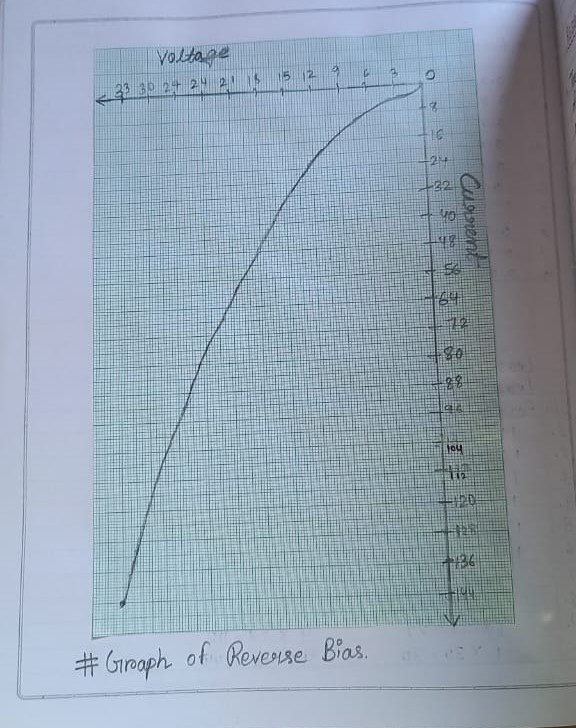

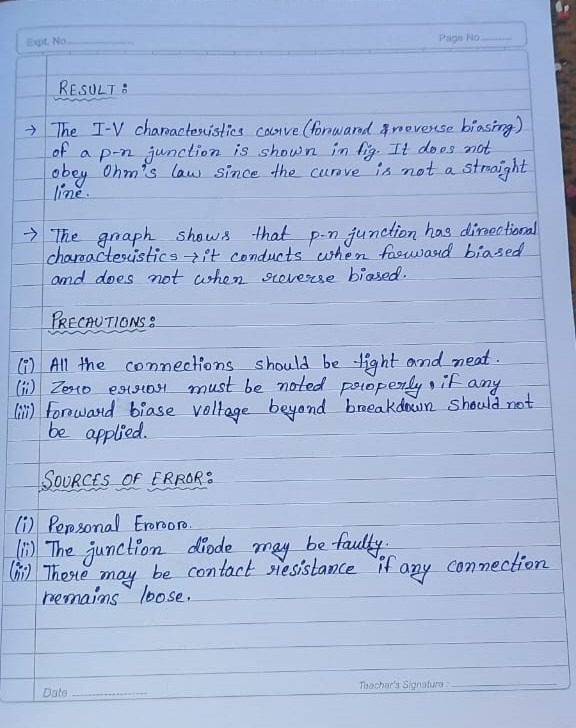

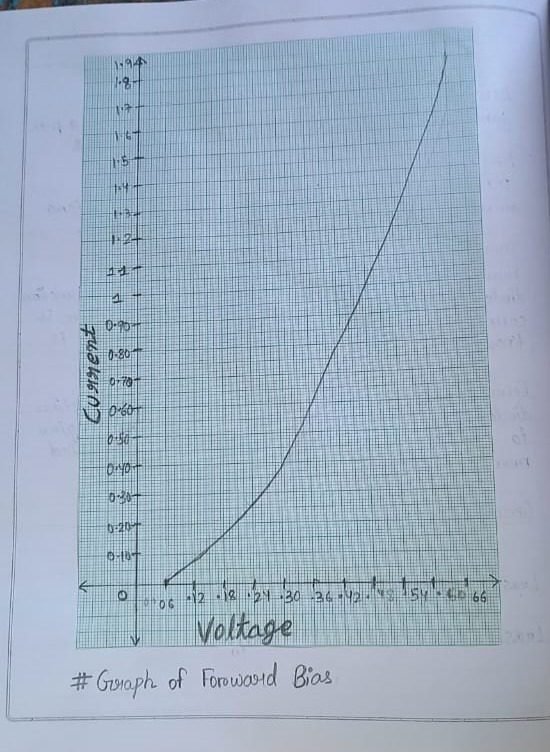

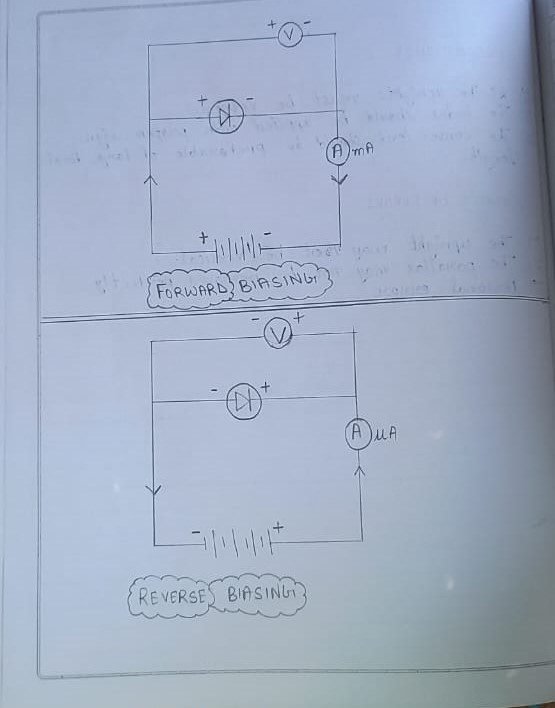

To draw the I-V characteristic curves of a p-n junction in forward bias and reverse bias.
